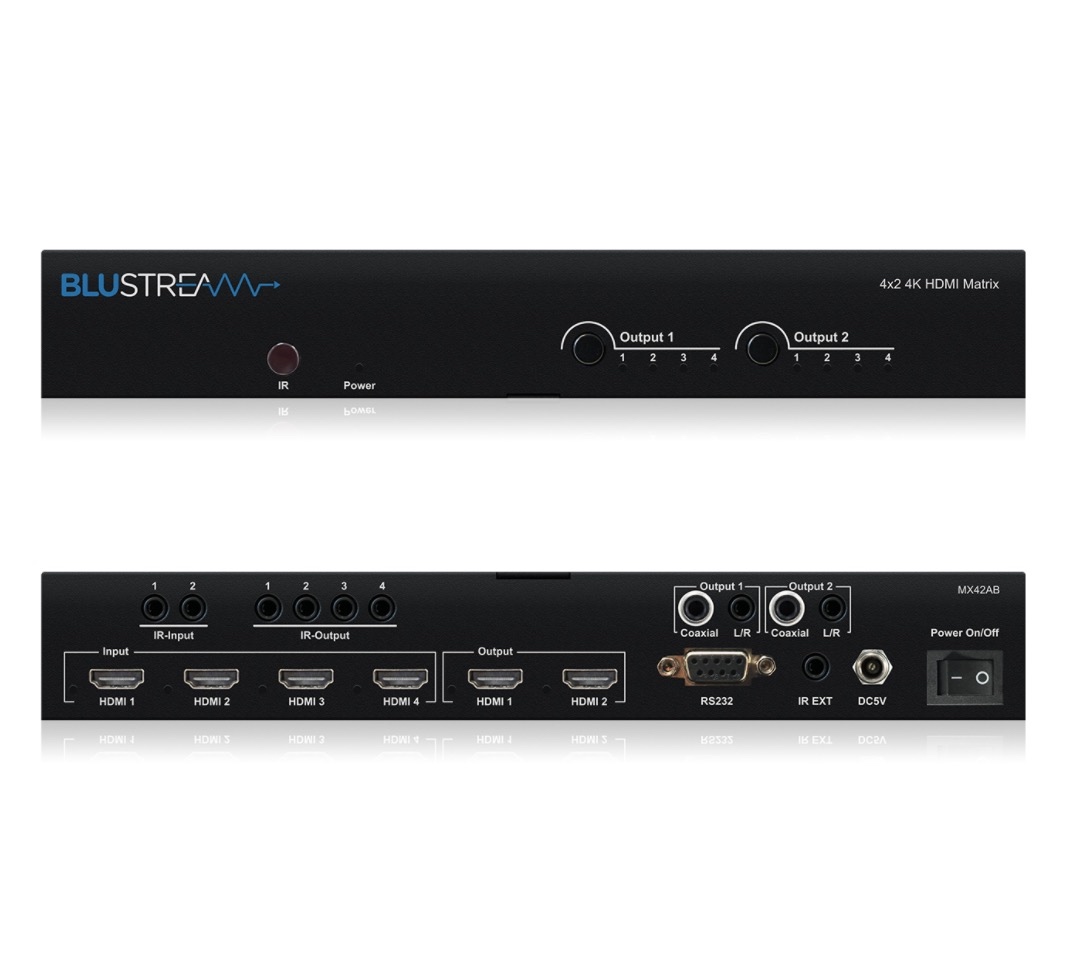

Blustream MX42AB 4×2 4K HDMI Matrix + Audio Breakout + EDID
$449.00
The MX42AB 4K HDMI matrix individually distributes four HDMI sources to two displays enabling all sources to be viewed seamlessly as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K. The 4-input matrix also includes the advanced features of audio breakout, RS-232 control and EDID management.
think HDMI think EZYHD est. 2007
Key Features
-
Features 4 x HDMI inputs which can be independently routed to both HDMI outputs
-
Supports 4K UHD video (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0
-
Supports 3D signal display
-
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
-
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
-
HDMI audio breakout to associated output analogue L/R audio and Coaxial digital outputs concurrently
-
One-way routed IR (for HDMI source control only)
-
Supplied with Blustream IR receivers and emitters
-
Control via front panel, IR and RS-232
-
3rd Party drivers available for all major home control brands
-
Advanced EDID management
-
HDCP1.4 compliant
Specifications
-
Video Input Connectors: 4 x HDMI Type A, 19-pin, female, locking
-
Video Output Connectors: 2 x HDMI Type A, 19-pin, female, locking
-
Audio Output Connectors: 2 x RCA (S/PDIF), 2 x Audio 3.5mm stereo jack
-
RS-232 serial port: DB-9, female
-
IR Input ports: 3 x 3.5mm stereo jack
-
IR Output ports: 4 x 3.5mm mono jack
-
Product Dimensions (W x D x H): 200 x 115 x 50mm (with feet & connections)
-
Product Dimensions (W x D x H): 260 x 105 x 40mm (without feet & connections)
-
Product Weight: 0.8kg (excluding accessories)
-
Carton / Box Dimensions (W x D x H): 340 x 205 x 120mm
-
Shipping Weight: 1.5kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
-
Power Supply: 5V/1A DC, screw type connector
