Blustream HEX100ARC-KIT-V2 HDBaseT Split Extender
$1,095.00
This Blustream HEX100ARC KIT V2 HDBaseT Extender Splitter allows 4k up to 70m over HDMI/Cat6! along with the very best in performance and flexibility. The HEX100ARC-KIT-V2 extender is an industry leading 4K HDBaseT solution delivering HDMI with HDCP 2.2 support, Bi-directional IR, RS232 and PoH (PoE) up to lengths of 100m 1080p over a single CAT cable. The HEX100ARC-KIT-V2 also provides enhanced features including HDMI loop-out on the Transmitter, ARC via HDMI or Optical (S/PDIF) and an integrated 3-port Ethernet switch. So if you want top notch here it is:) See specs and inclusions below.
think HDMI think… EZYHD est. 2007
Key Features:
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Extends HDMI up to a distance of 100m over single CAT cable at 1080p
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Features 1x HDMI loop out for integrating local displays or cascading to further signal distribution devices
- Supports ARC (Audio Return Channel) from display via HDMI or Optical digital inputs (to 90m max distance*)
- Supports audio return to HDMI, Optical digital and analogue L/R audio outputs (DAC PCM only)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Integrated 3-port 10/100BaseT Ethernet switch (LAN Serving)
- Bi-directional RS-232 pass through
- Bi-directional IR from all input and output locations
- Supplied with Blustream IR receiver and emitter
- Bi-directional PoH (Power over HDBaseT) to power extenders from either transmitter or receiver end
- HDCP 2.2 support
* Where ARC is required over longer distances, it is highly recommended that shielded CAT cable be used
Specifications
HEX100ARC-TX-V2:
- Video Input Connectors: 1x HDMI Type A, female
- Video Output Connectors: 1x HDBaseT RJ45 connector, 1x HDMI Type A, female
- Audio Output Connectors: 2x RCA (L/R), 1x Optical (SPDIF)
- Ethernet port: 1x RJ45 connector
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
- 2x mounting bracket

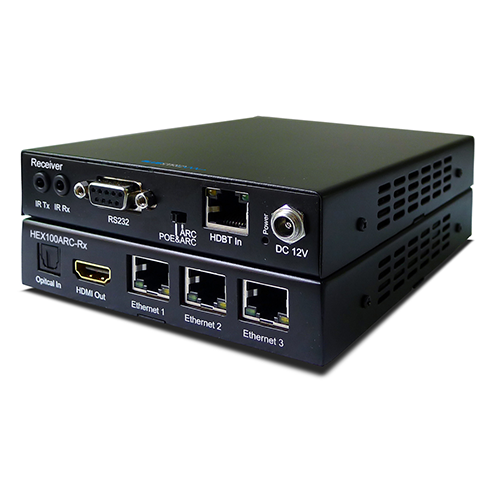

HEX100ARC-RX:
- Video Input Connectors: 1x HDBaseT RJ45 connector,
- Video Output Connectors: 1x HDMI Type A, female
- Audio Input Connectors: 1x Optical (SPDIF)
- Ethernet port: 3x RJ-45 connector
- RS-232 serial port: 1x DB-9 female
- IR Input ports: 1x 3.5mm stereo jack
- IR Output ports: 1x 3.5mm mono jack
Contents:
1 x HEX100ARC-V2-TX
1 x HEX100ARC-RX
1 x 15V/2A DC au power supply
1 x IRR receiver
1 x IR emitter
2 x Mounting brackets
1 x User manual
